Professional Certificate in Medical Data System (Course Number-4889008)

www.iqytechnicalcollege.com/MedicalDatasystem.htm



Objective- To effectively manage data system in medical records



Pre-requisite- MBBS/ BDS/ B Pharm



Contents  ICT409 Hospital Data System

www.iqytechnicalcollege.com/Hospital Data.pdf

www.iqytechnicalcollege.com/Database_Management_System_Case_Studies Hospital.pdf

Videos

·        Hospital Database Analysis Design

https://youtu.be/Hni9Ez7cwck

·        Hospital Management System Data Entry

https://youtu.be/8WSwEO90avQ

·        Hospital website and appointment system

               https://www.youtube.com/watch?v=70bHnwV-MY0

·        Hospital Management System Doctor Log in

https://youtu.be/-kDu4X1VFBo

·        Hospital Management System  with PHP

https://youtu.be/qhHvXXrgfqc

·        Hospital Management System in PHP

https://youtu.be/CLG0qPT_dfs

Part 1 -  Practical Application Tutorials- Hospital Data System

Award- Professional Certificate in Medical Data System



To create MySQL database and users, follow these steps:

1.    At the command line, log in to MySQL as the root user: mysql -u root -p.

2.    Type the MySQL root password, and then press Enter.

3.    Type \q to exit the mysql program.

4.    To log in to MySQL as the user you just created, type the following comma

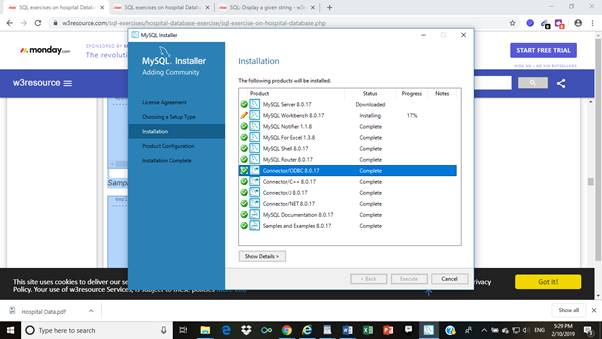

MySQL Installer can install and manage multiple, separate MySQL server instances on the same host at the same time. For example, MySQL Installer can install, configure, and upgrade a separate instance of MySQL 5.6, MySQL 5.7, and MySQL 8.0 on the same host.



MySQL open source software is provided under the GPL License. ... MySQL Community Edition is a freely downloadable version of the world's most popular open source database that is supported by an active community of open source developers and enthusiasts. MySQL Cluster Community Edition is available as a separate download



MySQL itself is open source and can be used as a standalone product in a commercial environment. If you're running mySQL on a web serveryou are free to do so for any purposecommercial or not. If you run a website that uses mySQLyou won't need to release any of your code. You'll be fine



It is not really difficult to learn SQL.

SQL is not a programming language, it's a query language. ... It is also an English like language so anyone who can use English at a basic level can write SQL query easily. The good news is that most DB engines are compatible with all SQL code





SQL Exercises, Practice, Solution - exercises on hospital Database



https://www.w3resource.com/sql-exercises/hospital-database-exercise/index.php



An introduction about hospital Database

Sample Database: hospital

With the help of a Hospital Database, this exercises will help you undestand simple SQL select queries to advanced multi table JOIN queries.

Sample Database description:

Hospitals are the most important part of our lives, trying to provide the best medical facilities to people suffering from various type of illness, which may be due to change in climate conditions, increased work-load, emotional trauma stress etc. It is very much difficult for the hospital to maintain its day-to-day acitivities and records manually. That is why a database is required to keep records of all type of acitivities of a hospital.

List of tables in the hospital database:

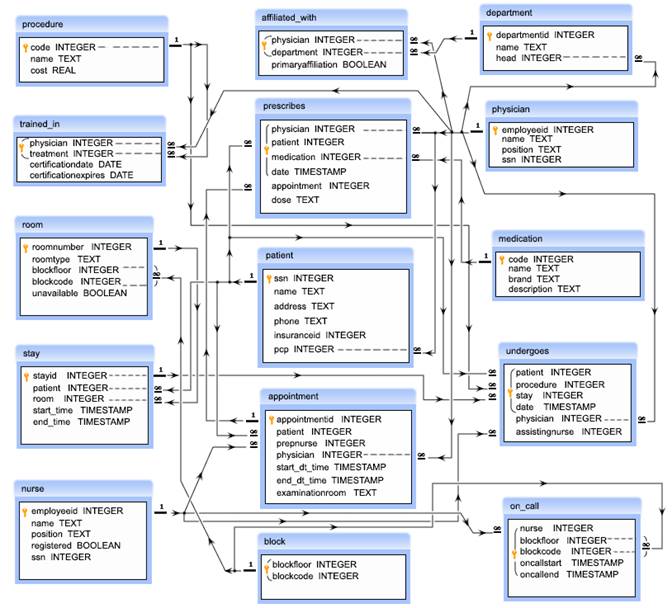

E R Diagram of Hospital Database:

E R Diagram: SQL Hospital Database.

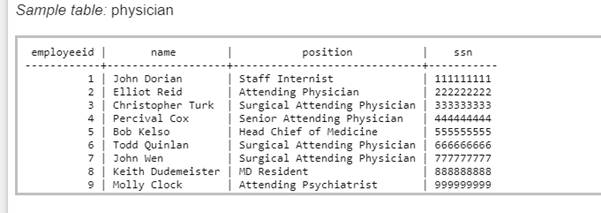

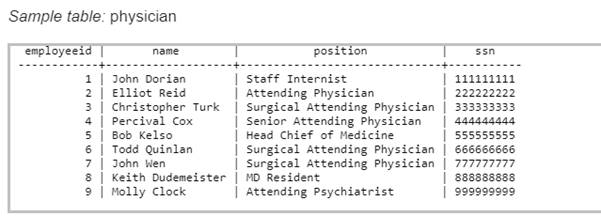

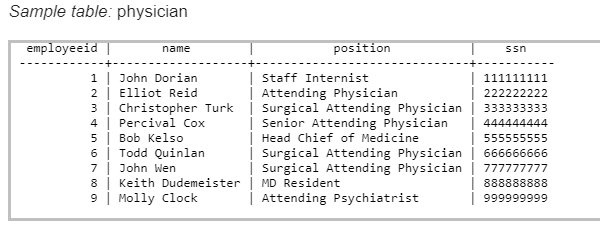

physician:

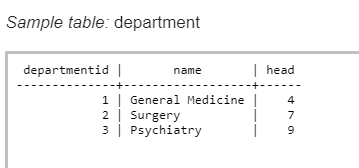

department:

affiliated_with:

procedure:

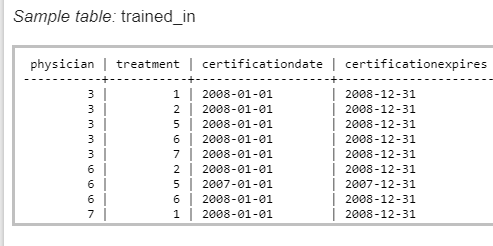

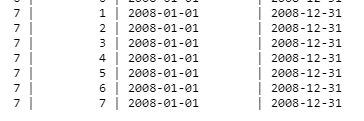

trained_in:

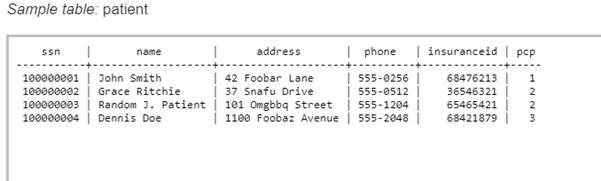

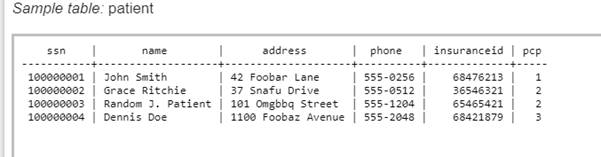

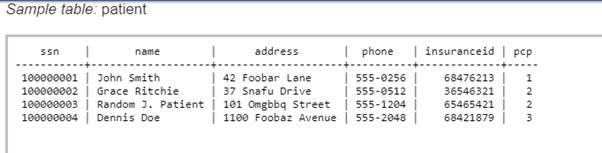

patient:

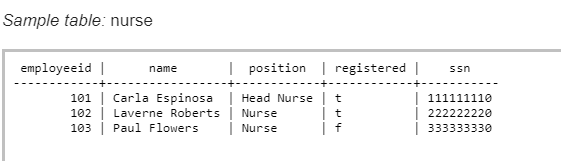

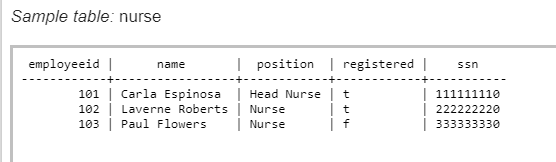

nurse:

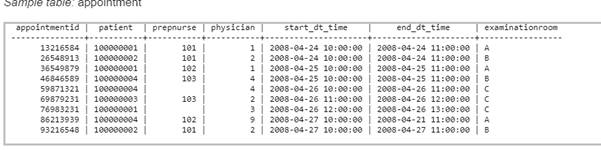

appointment:

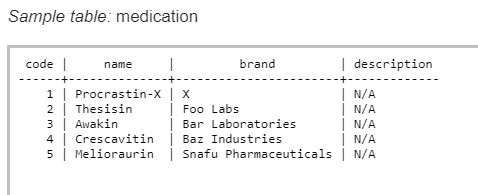

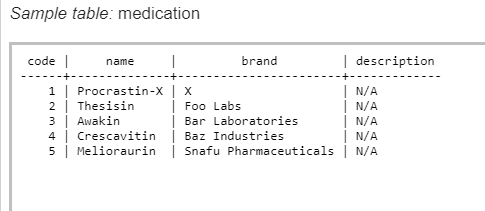

medication:

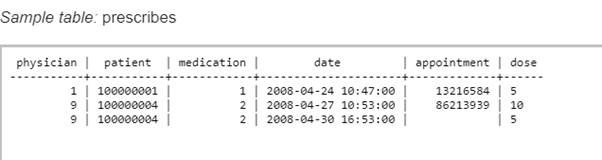

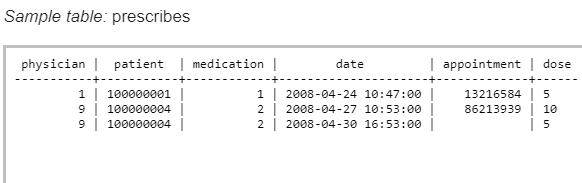

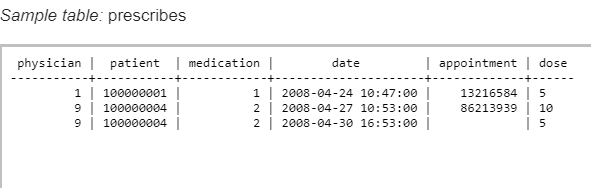

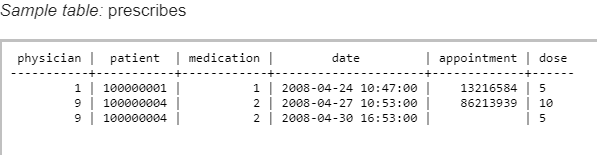

prescribes:

block:

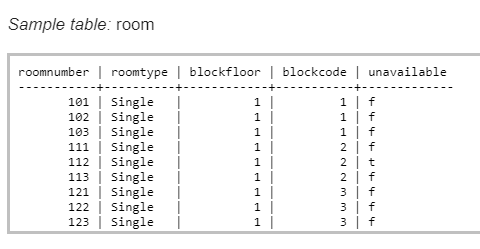

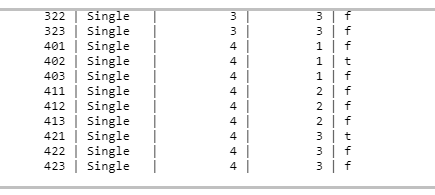

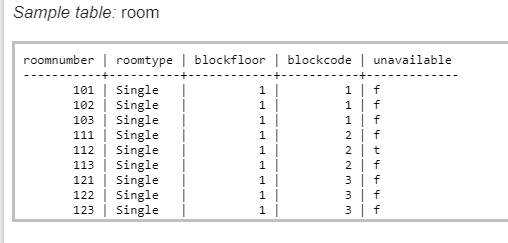

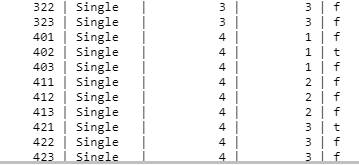

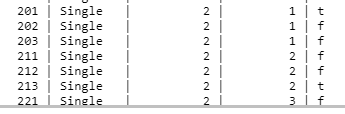

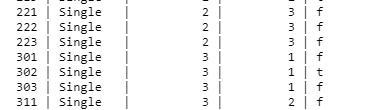

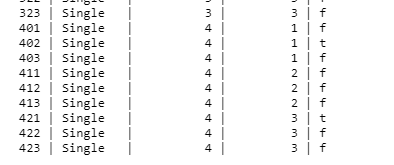

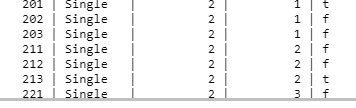

room:

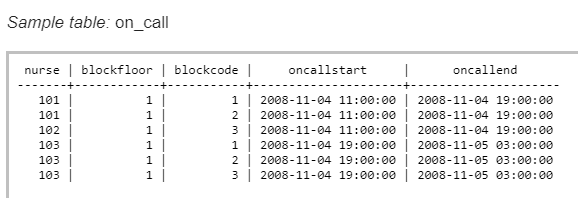

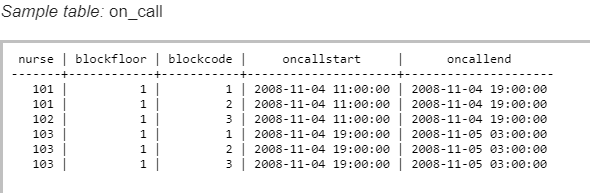

on_call:

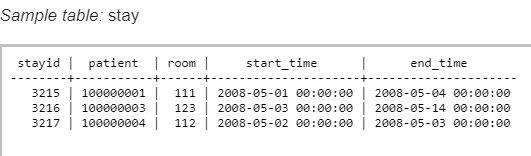

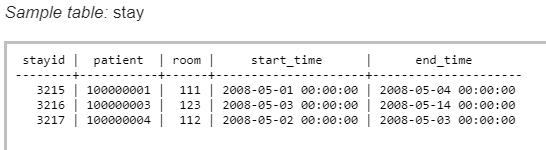

stay:

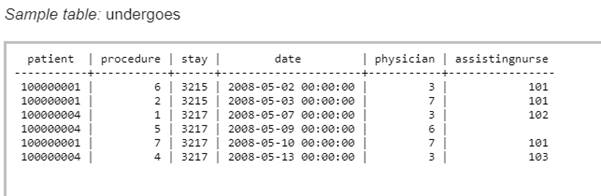

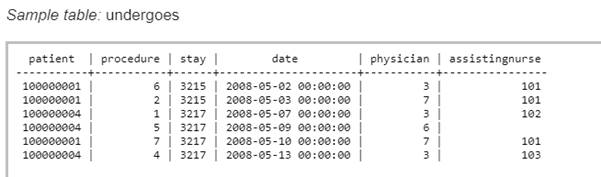

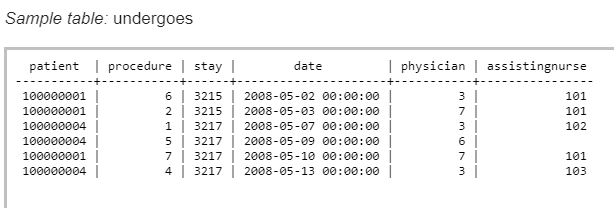

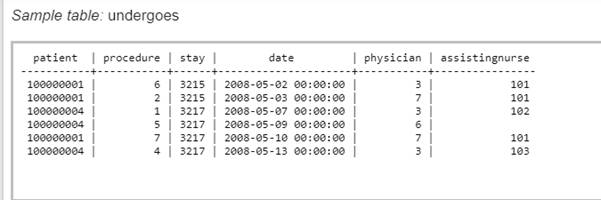

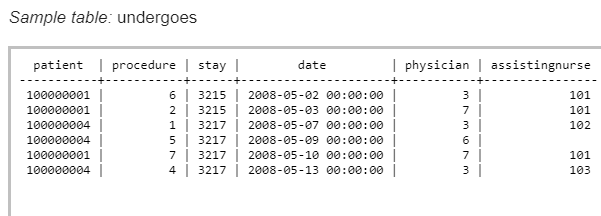

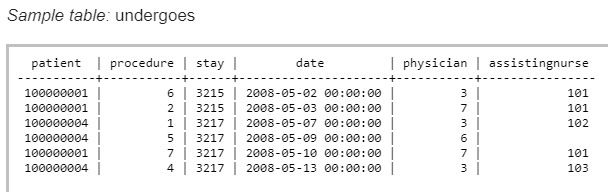

undergoes:

The database for hospital management system used for this exercises is based upon a database available in wikipedia. Sturcture and Data are may have gone through alterations sporadically.



https://www.w3resource.com/sql-exercises/hospital-database-exercise/sql-exercise-hospital-database-3.php



SQL [39 exercises with solution]

[An editor is available at the bottom of the page to write and execute the scripts.]

Sample Database: hospital

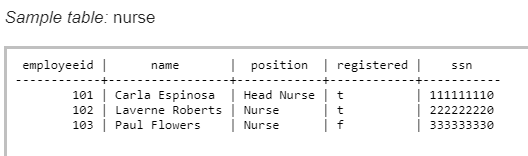

1. Write a query in SQL to find all the information of the nurses who are yet to be registered.  Go to the editor



ANSWER

Sample Solution:

SELECT *

FROM nurse

WHERE registered='false';

Copy

Sample Output:

  employeeid |     name     | position | registered |    ssn

 ------------+--------------+----------+------------+-----------

         103 | Paul Flowers | Nurse    | f          | 333333330

 (1 row)



2. Write a query in SQL to find the name of the nurse who are the head of their department.  Go to the editor

ANSWER



Sample Solution:

SELECT name AS "Name",

       POSITION AS "Position"

FROM nurse

WHERE POSITION='Head Nurse';

Copy

Sample Output:

      Name      |  Position

----------------+------------

 Carla Espinosa | Head Nurse

(1 row)



3. Write a query in SQL to obtain the name of the physicians who are the head of each department.  Go to the editor

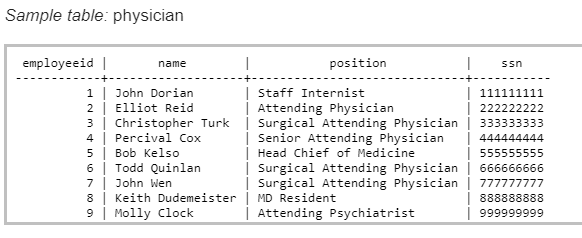

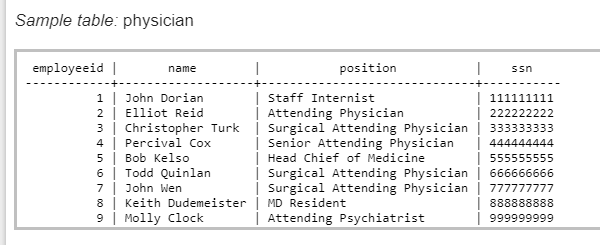

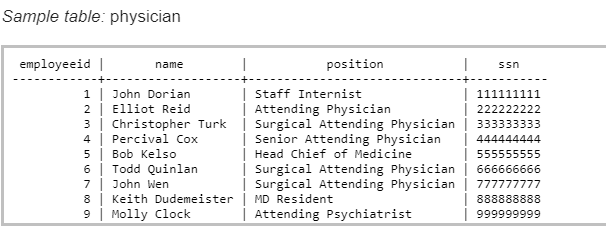

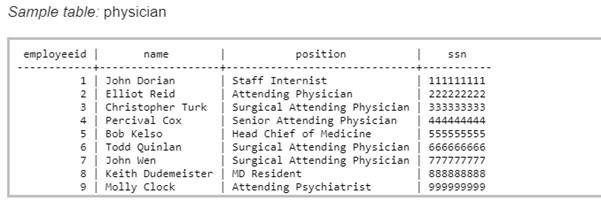

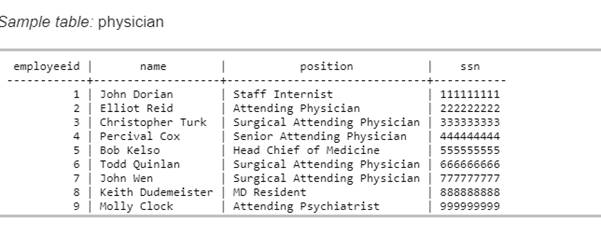

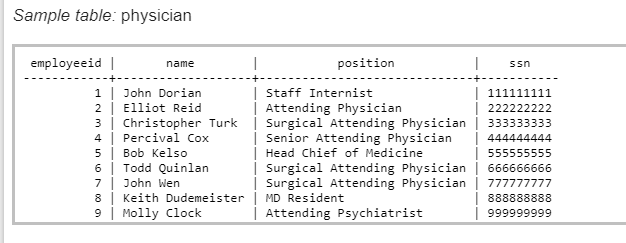

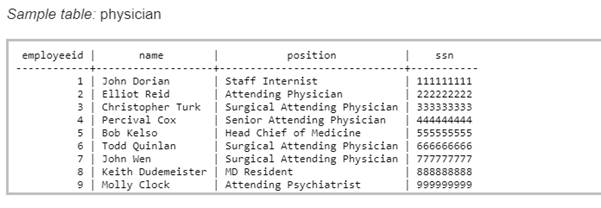

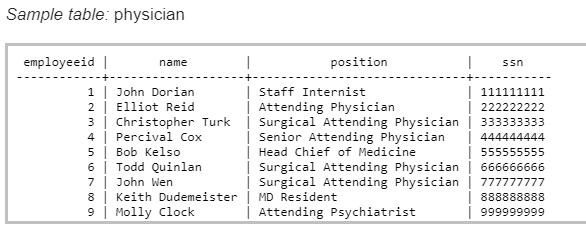

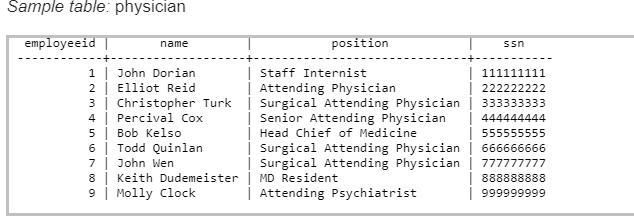

Sample table: physician

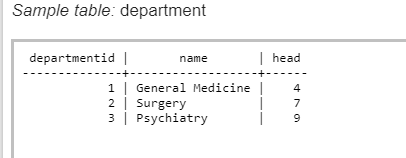

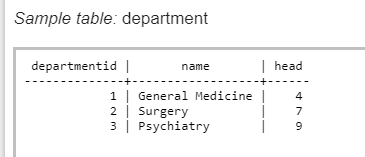

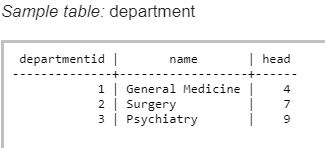

Sample table: department

Click me to see the solution

ANSWER



Sample Solution:

SELECT d.name AS "Department",

       p.name AS "Physician"

FROM department d,

     physician p

WHERE d.head=p.employeeid;

Copy

Sample Output:

    Department    |  Physician

------------------+--------------

 General Medicine | Percival Cox

 Surgery          | John Wen

 Psychiatry       | Molly Clock

(3 rows)



4. Write a query in SQL to count the number of patients who taken appointment with at least one physician.  Go to the editor

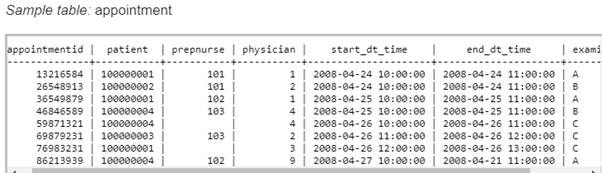

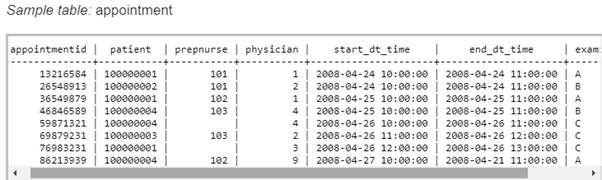

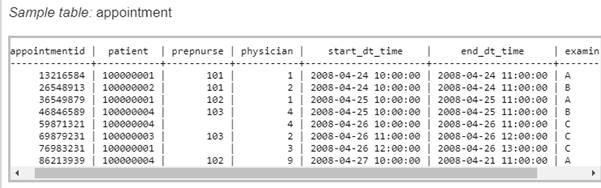

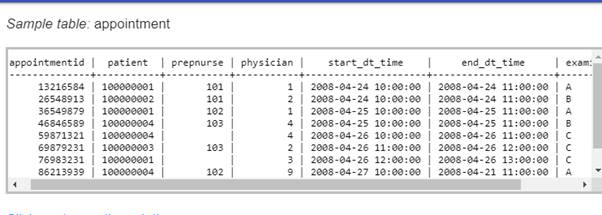

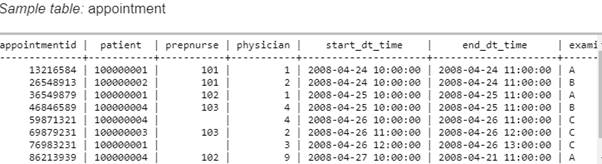

Sample table: appointment

ANSWER


Sample Solution:

SELECT blockfloor AS "Floor",

       blockcode AS "Block"

FROM room

WHERE roomnumber=212;

Copy

Sample Output:

 Floor | Block

-------+-------

     2 |     2

(1 row)





Click me to see the solution

5. Write a query in SQL to find the floor and block where the room number 212 belongs to.  Go to the editor

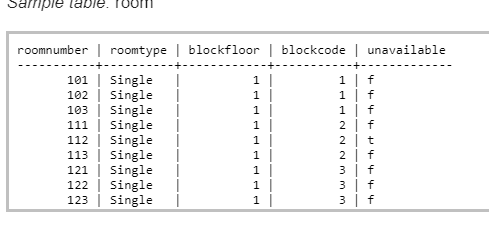

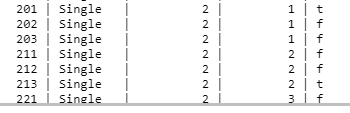

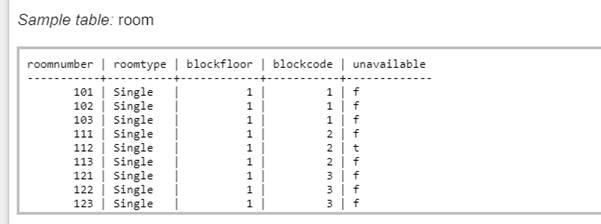

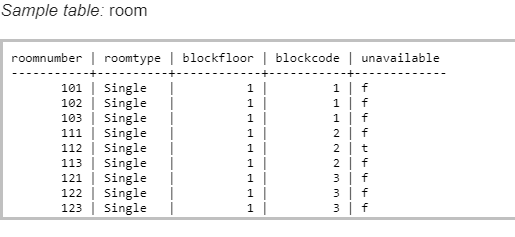

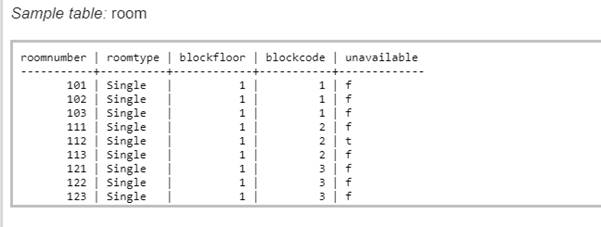

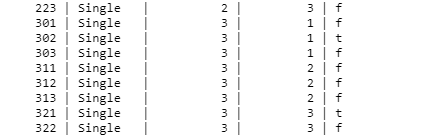

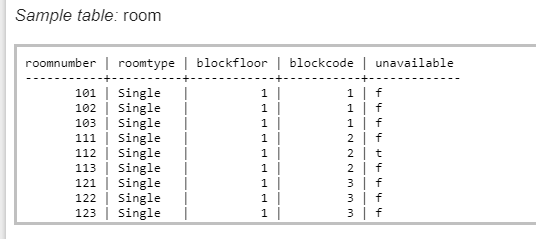

Sample table: room

ANSWER

ample Solution:

SELECT blockfloor AS "Floor",

       blockcode AS "Block"

FROM room

WHERE roomnumber=212;

Copy

Sample Output:

 Floor | Block

-------+-------

     2 |     2

(1 row)





Click me to see the solution

6. Write a query in SQL to count the number available rooms.  Go to the editor

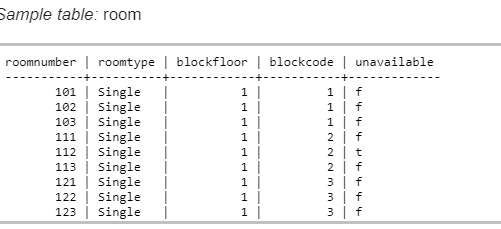

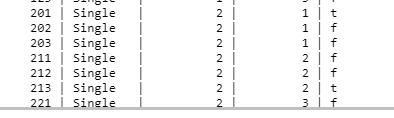

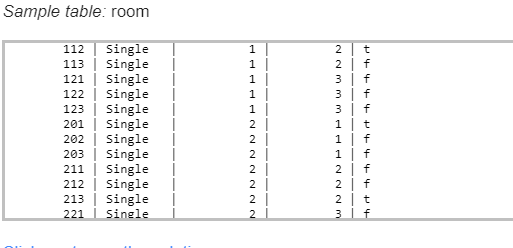

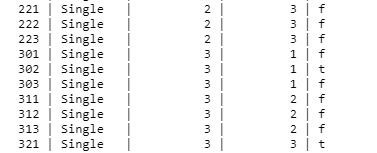

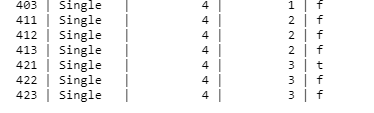

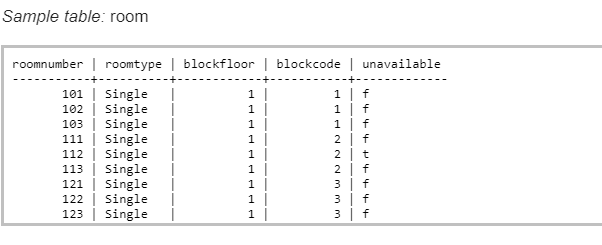

Sample table: room

Click me to see the solution

ANSWER

Sample Solution:

SELECT count(*) "Number of available rooms"

FROM room

WHERE unavailable='false';

Copy

Sample Output:

 Number of available rooms

---------------------------

                        29

(1 row)



7. Write a query in SQL to count the number of unavailable rooms.  Go to the editor

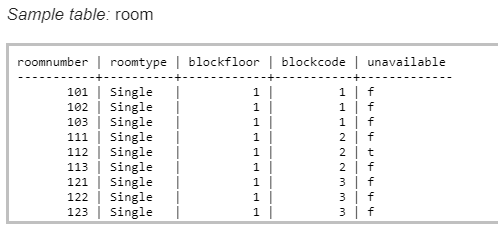

Sample table: room

ANSWER

Sample Solution:

SELECT count(*) "Number of available rooms"

FROM room

WHERE unavailable='true';

Copy

Sample Output:

 Number of available rooms

---------------------------

                         7

(1 row)





Click me to see the solution

8. Write a query in SQL to obtain the name of the physician and the departments they are affiliated with.  Go to the editor

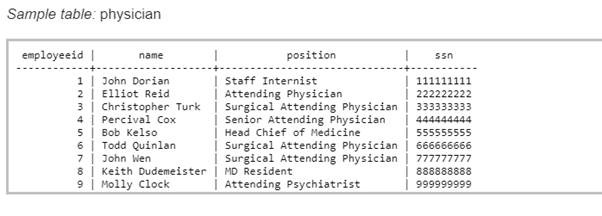

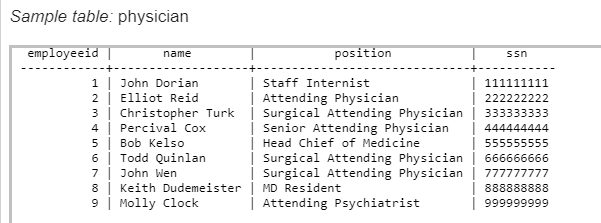

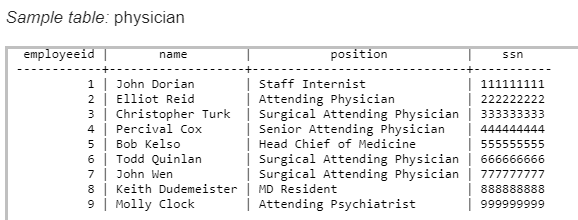

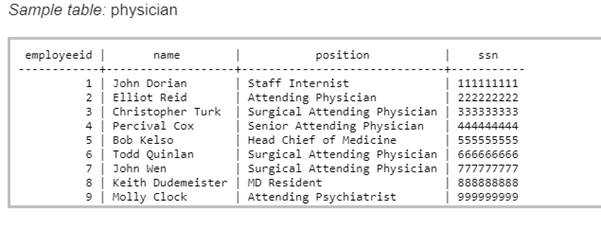

Sample table: physician

Sample table: department

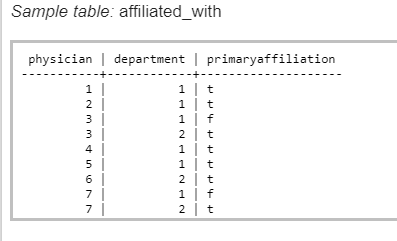

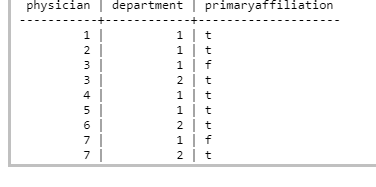

Sample table: affiliated_with

ANSWER



Sample Solution:

SELECT p.name AS "Physician",

       d.name AS "Department"

FROM physician p,

     department d,

     affiliated_with a

WHERE p.employeeid=a.physician

  AND a.department=d.departmentid;

Copy

Sample Output:

     Physician     |    Department

-------------------+------------------

 John Dorian       | General Medicine

 Elliot Reid       | General Medicine

 Christopher Turk  | General Medicine

 Christopher Turk  | Surgery

 Percival Cox      | General Medicine

 Bob Kelso         | General Medicine

 Todd Quinlan      | Surgery

 John Wen          | General Medicine

 John Wen          | Surgery

 Keith Dudemeister | General Medicine

 Molly Clock       | Psychiatry

(11 rows)



Click me to see the solution

9. Write a query in SQL to obtain the name of the physicians who are trained for a special treatement.  Go to the editor

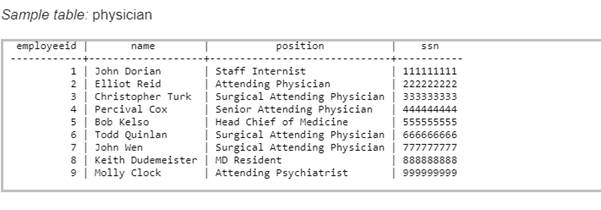

Sample table: physician

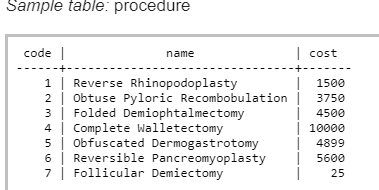

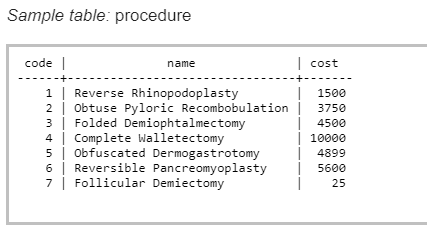

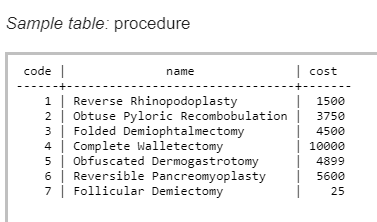

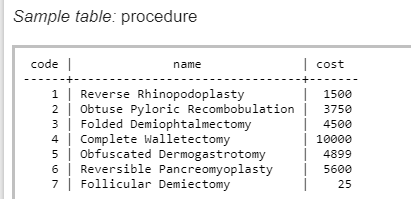

Sample table: procedure

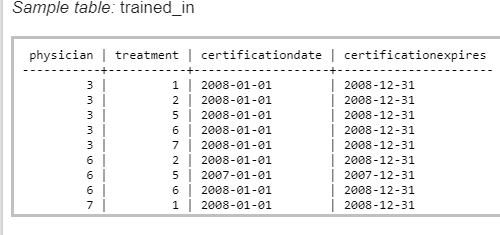

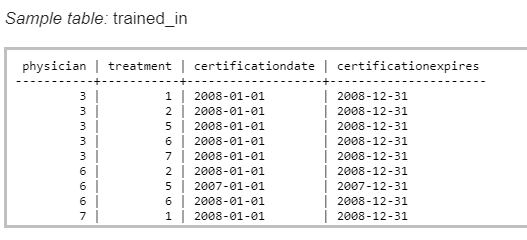

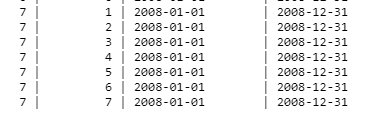

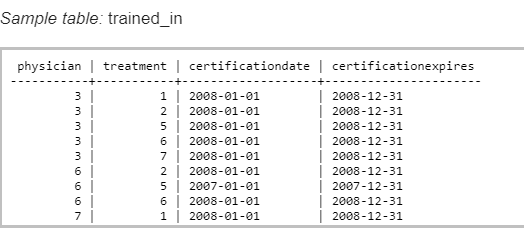

Sample table: trained_in

Click me to see the solution

ANSWER




Sample Solution:

SELECT p.name AS "Physician",

       c.name AS "Treatement"

FROM physician p,

     PROCEDURE c,

               trained_in t

WHERE t.physician=p.employeeid

  AND t.treatment=c.code;

Copy

Sample Output:

    Physician     |           Treatement

------------------+--------------------------------

 Christopher Turk | Reverse Rhinopodoplasty

 Christopher Turk | Obtuse Pyloric Recombobulation

 Christopher Turk | Obfuscated Dermogastrotomy

 Christopher Turk | Reversible Pancreomyoplasty

 Christopher Turk | Follicular Demiectomy

 Todd Quinlan     | Obtuse Pyloric Recombobulation

 Todd Quinlan     | Obfuscated Dermogastrotomy

 Todd Quinlan     | Reversible Pancreomyoplasty

 John Wen         | Reverse Rhinopodoplasty

 John Wen         | Obtuse Pyloric Recombobulation

 John Wen         | Folded Demiophtalmectomy

 John Wen         | Complete Walletectomy

 John Wen         | Obfuscated Dermogastrotomy

 John Wen         | Reversible Pancreomyoplasty

 John Wen         | Follicular Demiectomy

(15 row





10. Write a query in SQL to obtain the name of the physicians with department who are yet to be affiliated.  Go to the editor

Sample table: physician

Sample table: affiliated_with



Sample table: department

ANSWER

Sample Solution:

SELECT p.name AS "Physician",

       p.position,

       d.name AS "Department"

FROM physician p

JOIN affiliated_with a ON a.physician=p.employeeid

JOIN department d ON a.department=d.departmentid

WHERE primaryaffiliation='false';

Copy

Sample Output:

    Physician     |           position           |    Department

------------------+------------------------------+------------------

 Christopher Turk | Surgical Attending Physician | General Medicine

 John Wen         | Surgical Attending Physician | General Medicine

(2 rows)



Click me to see the solution

11. Write a query in SQL to obtain the name of the physicians who are not a specialized physician.  Go to the editor

Sample table: physician

ANSWER



Sample Solution:

SELECT p.name AS "Physician",

       p.position "Designation"

FROM physician p

LEFT JOIN trained_in t ON p.employeeid=t.physician

WHERE t.treatment IS NULL

ORDER BY employeeid;

Copy

Sample Output:

     Physician     |        Designation

-------------------+----------------------------

 John Dorian       | Staff Internist

 Elliot Reid       | Attending Physician

 Percival Cox      | Senior Attending Physician

 Bob Kelso         | Head Chief of Medicine

 Keith Dudemeister | MD Resident

 Molly Clock       | Attending Psychiatrist

(6 rows)



Click me to see the solution

12. Write a query in SQL to obtain the name of the patients with their physicians by whom they got their preliminary treatement.  Go to the editor

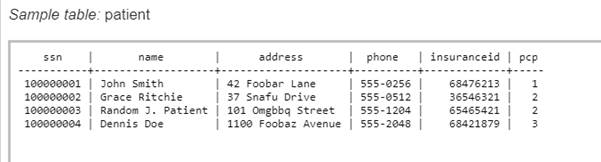

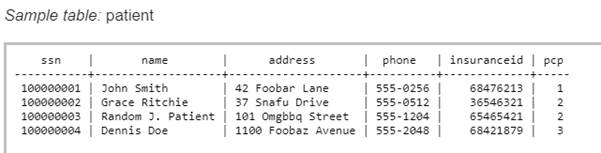

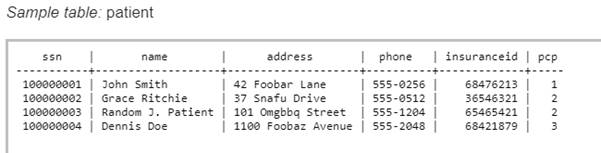

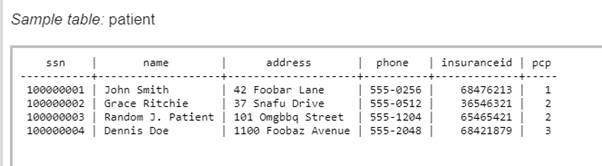

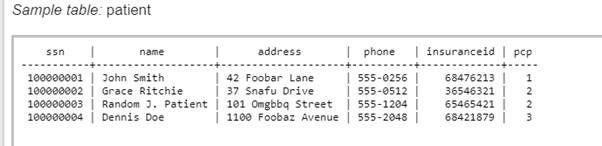

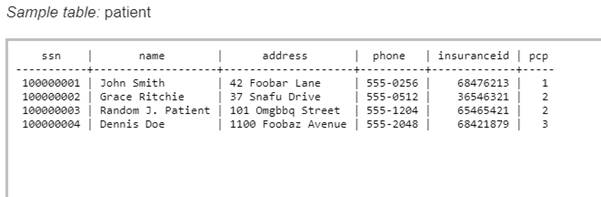

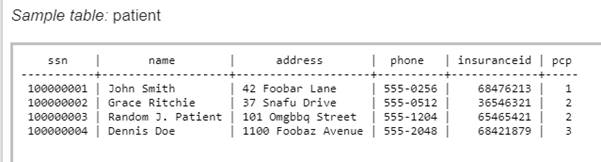

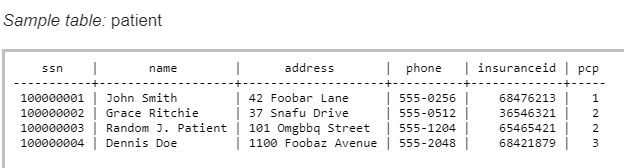

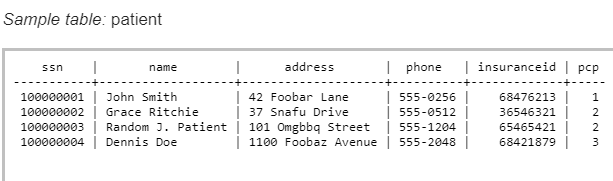

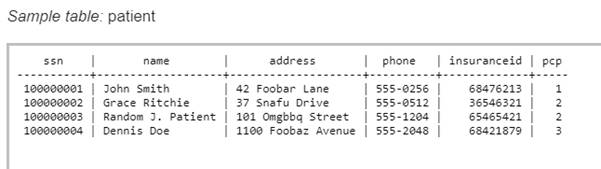

Sample table: patient

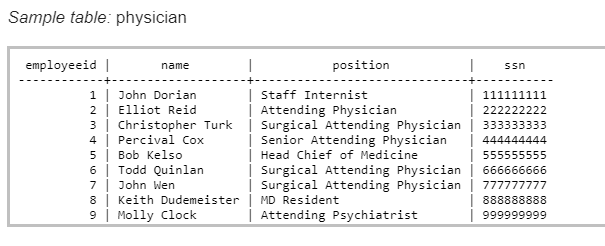

Sample table: physician

ANSWER




Sample Solution:

SELECT t.name AS "Patient",

       t.address AS "Address",

       p.name AS "Physician"

FROM patient t

JOIN physician p ON t.pcp=p.employeeid;

Copy

Sample Output:

      Patient      |      Address       |    Physician

-------------------+--------------------+------------------

 John Smith        | 42 Foobar Lane     | John Dorian

 Grace Ritchie     | 37 Snafu Drive     | Elliot Reid

 Random J. Patient | 101 Omgbbq Street  | Elliot Reid

 Dennis Doe        | 1100 Foobaz Avenue | Christopher Turk

(4 rows)





Click me to see the solution

13. Write a query in SQL to find the name of the patients and the number of physicians they have taken appointment.  Go to the editor

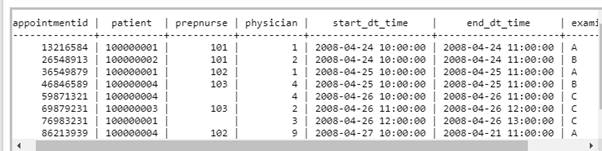

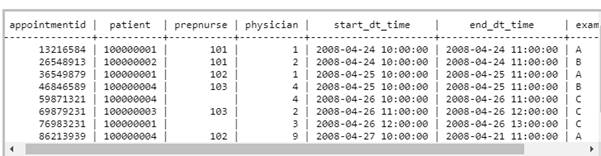

Sample table: appointment

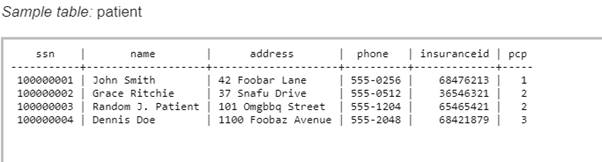

Sample table: patient

ANSWER

Sample Solution:

SELECT p.name "Patient",

       count(t.patient) "Appointment for No. of Physicians"

FROM appointment t

JOIN patient p ON t.patient=p.ssn

GROUP BY p.name

HAVING count(t.patient)>=1;

Copy

Sample Output:

      Patient      | Appointment for No. of Physicians

-------------------+-----------------------------------

 Grace Ritchie     |                                 2

 John Smith        |                                 3

 Dennis Doe        |                                 3

 Random J. Patient |                                 1

(4 rows)





Click me to see the solution

14. Write a query in SQL to count number of unique patients who got an appointment for examination room C.  Go to the editor

Sample table: appointment

ANSWER

Sample Solution:

SELECT count(DISTINCT patient) AS "No. of patients got appointment for room C"

FROM appointment

WHERE examinationroom='C';

Copy

Sample Output:

No. of patients got appointment for room C

--------------------------------------------

                                          3

(1 row)



Click me to see the solution

15. Write a query in SQL to find the name of the patients and the number of the room where they have to go for their treatment.  Go to the editor

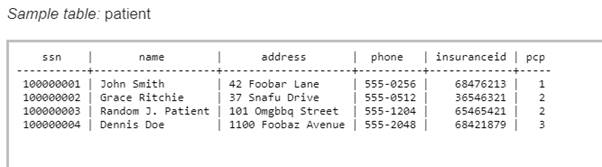

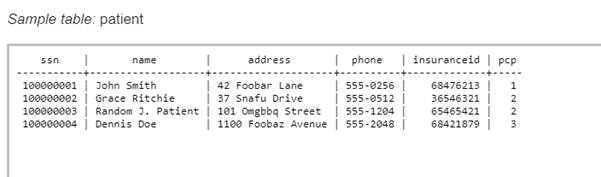

Sample table: patient

Sample table: appointment

ANSWER



Sample Solution:

SELECT p.name AS "Patient",

       a.examinationroom AS "Room No.",

       a.start_dt_time AS "Date and Time of appointment"

FROM patient p

JOIN appointment a ON p.ssn=a.patient;

Copy

Sample Output:

      Patient      | Room No. | Date and Time of appointment

-------------------+----------+------------------------------

 John Smith        | A        | 2008-04-24 10:00:00

 Grace Ritchie     | B        | 2008-04-24 10:00:00

 John Smith        | A        | 2008-04-25 10:00:00

 Dennis Doe        | B        | 2008-04-25 10:00:00

 Dennis Doe        | C        | 2008-04-26 10:00:00

 Random J. Patient | C        | 2008-04-26 11:00:00

 John Smith        | C        | 2008-04-26 12:00:00

 Dennis Doe        | A        | 2008-04-27 10:00:00

 Grace Ritchie     | B        | 2008-04-27 10:00:00

(9 rows)



Click me to see the solution

16. Write a query in SQL to find the name of the nurses and the room scheduled, where they will assist the physicians.  Go to the editor

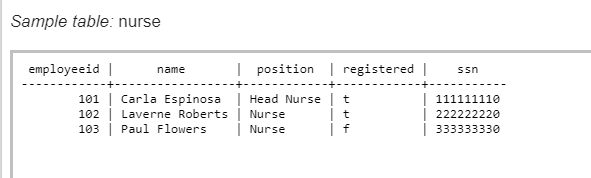

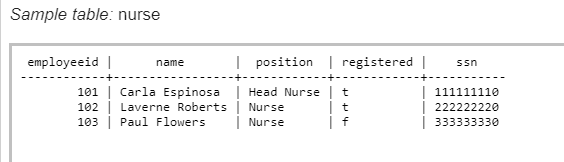

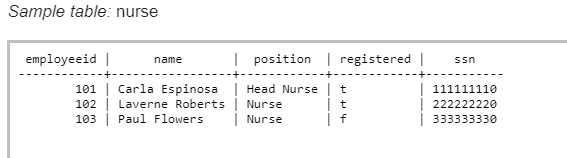

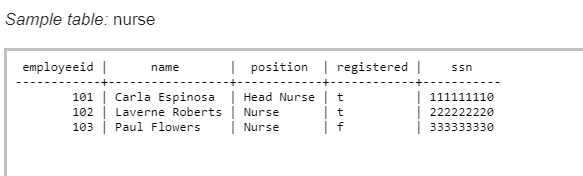

Sample table: nurse



Sample table: appointment



Click me to see the solution

ANSWER

Sample Solution:

SELECT n.name AS "Name of the Nurse",

       a.examinationroom AS "Room No."

FROM nurse n

JOIN appointment a ON a.prepnurse=n.employeeid;

Copy

Sample Output:

 Name of the Nurse | Room No.

-------------------+----------

 Carla Espinosa    | A

 Carla Espinosa    | B

 Laverne Roberts   | A

 Paul Flowers      | B

 Paul Flowers      | C

 Laverne Roberts   | A

 Carla Espinosa    | B

(7 rows)





17. Write a query in SQL to find the name of the patients who taken the appointment on the 25th of April at 10 am, and also display their physician, assisting nurses and room no.  Go to the editor

Sample table: patient

Sample table: appointment

Sample table: nurse

Sample table: physician

Click me to see the solution

ANSWER

Sample Solution:

SELECT t.name AS "Name of the patient",

       n.name AS "Name of the Nurse assisting the physician",

       p.name AS "Name of the physician",

       a.examinationroom AS "Room No.",

       a.start_dt_time

FROM patient t

JOIN appointment a ON a.patient=t.ssn

JOIN nurse n ON a.prepnurse=n.employeeid

JOIN physician p ON a.physician=p.employeeid

WHERE start_dt_time='2008-04-25 10:00:00';

Copy

Sample Output:

 Name of the patient | Name of the Nurse assisting the physician | Name of the physician | Room No. |    start_dt_time

---------------------+-------------------------------------------+-----------------------+----------+---------------------

 John Smith          | Laverne Roberts                           | John Dorian           | A        | 2008-04-25 10:00:00

 Dennis Doe          | Paul Flowers                              | Percival Cox          | B        | 2008-04-25 10:00:00

(2 rows)



18. Write a query in SQL to find the name of patients and their physicians who does not require any assistance of a nurse.  Go to the editor

Sample table: patient

Sample table: appointment

Sample table: physician

Click me to see the solution

ANSWER

Sample Solution:

SELECT t.name AS "Name of the patient",

       p.name AS "Name of the physician",

       a.examinationroom AS "Room No."

FROM patient t

JOIN appointment a ON a.patient=t.ssn

JOIN physician p ON a.physician=p.employeeid

WHERE a.prepnurse IS NULL;

Copy

Sample Output:

 Name of the patient | Name of the physician | Room No.

---------------------+-----------------------+----------

 John Smith          | Christopher Turk      | C

 Dennis Doe          | Percival Cox          | C

(2 rows)



19. Write a query in SQL to find the name of the patients, their treating physicians and medication.  Go to the editor

Sample table: patient

Sample table: prescribes

Sample table: physician

Sample table: medication

ANSWER


Sample Solution:

SELECT t.name AS "Patient",

       p.name AS "Physician",

       m.name AS "Medication"

FROM patient t

JOIN prescribes s ON s.patient=t.ssn

JOIN physician p ON s.physician=p.employeeid

JOIN medication m ON s.medication=m.code;

Copy

Sample Output:

  Patient   |  Physician  |  Medication

------------+-------------+--------------

 John Smith | John Dorian | Procrastin-X

 Dennis Doe | Molly Clock | Thesisin

 Dennis Doe | Molly Clock | Thesisin

(3 rows)



Click me to see the solution

20. Write a query in SQL to find the name of the patients who taken an advanced appointment, and also display their physicians and medication.  Go to the editor

Sample table: patient

Sample table: prescribes

Sample table: physician

Sample table: medication

ANSWER

Sample Solution:

SELECT t.name AS "Patient",

       p.name AS "Physician",

       m.name AS "Medication"

FROM patient t

JOIN prescribes s ON s.patient=t.ssn

JOIN physician p ON s.physician=p.employeeid

JOIN medication m ON s.medication=m.code

WHERE s.appointment IS NOT NULL;

Copy

Sample Output:

  Patient   |  Physician  |  Medication

------------+-------------+--------------

 John Smith | John Dorian | Procrastin-X

 Dennis Doe | Molly Clock | Thesisin

(2 rows)



Click me to see the solution

21. Write a query in SQL to find the name and medication for those patients who did not take any appointment.  Go to the editor

Sample table: patient

Sample table: prescribes

Sample table: physician



Sample table: medication

Click me to see the solution

ANSWER

Sample Solution:

SELECT t.name AS "Patient",

       p.name AS "Physician",

       m.name AS "Medication"

FROM patient t

JOIN prescribes s ON s.patient=t.ssn

JOIN physician p ON s.physician=p.employeeid

JOIN medication m ON s.medication=m.code

WHERE s.appointment IS NULL;

Copy

Sample Output:

  Patient   |  Physician  | Medication

------------+-------------+------------

 Dennis Doe | Molly Clock | Thesisin

(1 row)



22. Write a query in SQL to count the number of available rooms in each block.  Go to the editor

Sample table: room

ANSWER

Sample Solution:

SELECT blockcode AS "Block",

       count(*) "Number of available rooms"

FROM room

WHERE unavailable='false'

GROUP BY blockcode

ORDER BY blockcode;

Copy

Sample Output:

 Block | Number of available rooms

-------+---------------------------

     1 |                         9

     2 |                        10

     3 |                        10

(3 rows)



Click me to see the solution

23. Write a query in SQL to count the number of available rooms in each floor.  Go to the editor

Sample table: room

Click me to see the solution

ANSWER

Sample Solution:

SELECT blockfloor AS "Floor",

       count(*) "Number of available rooms"

FROM room

WHERE unavailable='false'

GROUP BY blockfloor

ORDER BY blockfloor;

Copy

Sample Output:

 Floor | Number of available rooms

-------+---------------------------

     1 |                         8

     2 |                         7

     3 |                         7

     4 |                         7

(4 rows)



24. Write a query in SQL to count the number of available rooms for each block in each floor.  Go to the editor

Sample table: room

ANSWER

Sample Solution:

SELECT blockfloor AS "Floor",
       blockcode AS "Block",
       count(*) "Number of available rooms"
FROM room
WHERE unavailable='false'
GROUP BY blockfloor,
        blockcode
ORDER BY blockfloor,
        blockcode;

Copy

Sample Output:

 Floor | Block | Number of available rooms
-------+-------+---------------------------
     1 |     1 |                         3
     1 |     2 |                         2
     1 |     3 |                         3
     2 |     1 |                         2
     2 |     2 |                         2
     2 |     3 |                         3
     3 |     1 |                         2
     3 |     2 |                         3
     3 |     3 |                         2
     4 |     1 |                         2
     4 |     2 |                         3
     4 |     3 |                         2
(12 rows)

Practice Online



Click me to see the solution

25. Write a query in SQL to count the number of unavailable rooms for each block in each floor.  Go to the editor

Sample table: room

Click me to see the solution

ANSWER

Sample Solution:

SELECT blockfloor AS "Floor",

       blockcode AS "Block",

       count(*) "Number of available rooms"

FROM room

WHERE unavailable='true'

GROUP BY blockfloor,

        blockcode

ORDER BY blockfloor,

        blockcode;

Copy

Sample Output:

 Floor | Block | Number of available rooms

-------+-------+---------------------------

     1 |     2 |                         1

     2 |     1 |                         1

     2 |     2 |                         1

     3 |     1 |                         1

     3 |     3 |                         1

     4 |     1 |                         1

     4 |     3 |                         1

(7 rows)





26. Write a query in SQL to find out the floor where the maximum no of rooms are available.  Go to the editor

Sample table: room

Click me to see the solution

ANSWER

Sample Solution:

SELECT blockfloor as "Floor",

       count(*) AS  "No of available rooms"

FROM room

WHERE unavailable='false'

GROUP BY blockfloor

HAVING count(*) =

  (SELECT max(zz) AS highest_total

   FROM

     ( SELECT blockfloor ,

              count(*) AS zz

      FROM room

      WHERE unavailable='false'

      GROUP BY blockfloor ) AS t );

Copy

Sample Output:

 Floor | No of available rooms

-------+-----------------------

     1 |                     8

(1 row



27. Write a query in SQL to find out the floor where the minimum no of rooms are available.  Go to the editor

Sample table: room

ANSWER


Sample Solution:

SELECT blockfloor as "Floor",

       count(*) AS  "No of available rooms"

FROM room

WHERE unavailable='false'

GROUP BY blockfloor

HAVING count(*) =

  (SELECT min(zz) AS highest_total

   FROM

     ( SELECT blockfloor ,

              count(*) AS zz

      FROM room

      WHERE unavailable='false'

      GROUP BY blockfloor ) AS t );

Copy

Sample Output:

 Floor | No of available rooms

-------+-----------------------

     3 |                     7

     4 |                     7

     2 |                     7

(3 rows



Click me to see the solution

28. Write a query in SQL to obtain the name of the patients, their block, floor, and room number where they are admitted.  Go to the editor

Sample table: stay

Sample table: patient

Sample table: room

Click me to see the solution

ANSWER


Sample Solution:

SELECT p.name AS "Patient",

       s.room AS "Room",

       r.blockfloor AS "Floor",

       r.blockcode AS "Block"

FROM stay s

JOIN patient p ON s.patient=p.ssn

JOIN room r ON s.room=r.roomnumber;

Copy

Sample Output:

      Patient      | Room | Floor | Block

-------------------+------+-------+-------

 John Smith        |  111 |     1 |     2

 Random J. Patient |  123 |     1 |     3

 Dennis Doe        |  112 |     1 |     2

(3 rows)



29. Write a query in SQL to obtain the nurses and the block where they are booked for attending the patients on call.  Go to the editor

Sample table: nurse

Sample table: on_call

Click me to see the solution

ANSWER

Sample Solution:

SELECT n.name AS "Nurse",

       o.blockcode AS "Block"

FROM nurse n

JOIN on_call o ON o.nurse=n.employeeid;

Copy

Sample Output:

      Nurse      | Block

-----------------+-------

 Carla Espinosa  |     1

 Carla Espinosa  |     2

 Laverne Roberts |     3

 Paul Flowers    |     1

 Paul Flowers    |     2

 Paul Flowers    |     3

(6 rows



30. Write a query in SQL to make a report which will show -
a) name of the patient,
b) name of the physician who is treating him or her,
c) name of the nurse who is attending him or her,
d) which treatement is going on to the patient,
e) the date of release,
f) in which room the patient has admitted and which floor and block the room belongs to respectively.  Go to the editor

Sample table: undergoes

Sample table: patient

Sample table: physician

Sample table: nurse

Sample table: stay

Sample table: room

Click me to see the solution

ANSWER

Sample Solution:

SELECT p.name AS "Patient",

       y.name AS "Physician",

       n.name AS "Nurse",

       u.date AS "Date of release",

       r.roomnumber AS "Room",

       r.blockfloor AS "Floor",

       r.blockcode AS "Block"

FROM undergoes u

JOIN patient p ON u.patient=p.ssn

JOIN physician y ON u.physician=y.employeeid

LEFT JOIN nurse n ON u.assistingnurse=n.employeeid

JOIN stay s ON u.stay=s.stayid

JOIN room r ON s.room=r.roomnumber;

Copy

Sample Output:

  Patient   |    Physician     |      Nurse      |   Date of release   | Room | Floor | Block

------------+------------------+-----------------+---------------------+------+-------+-------

 John Smith | Christopher Turk | Carla Espinosa  | 2008-05-02 00:00:00 |  111 |     1 |     2

 John Smith | John Wen         | Carla Espinosa  | 2008-05-03 00:00:00 |  111 |     1 |     2

 Dennis Doe | Christopher Turk | Laverne Roberts | 2008-05-07 00:00:00 |  112 |     1 |     2

 Dennis Doe | Todd Quinlan     |                 | 2008-05-09 00:00:00 |  112 |     1 |     2

 John Smith | John Wen         | Carla Espinosa  | 2008-05-10 00:00:00 |  112 |     1 |     2

 Dennis Doe | Christopher Turk | Paul Flowers    | 2008-05-13 00:00:00 |  112 |     1 |     2

(6 rows)



31. Write a SQL query to obtain the names of all the physicians performed a medical procedure but they are not ceritifed to perform.  Go to the editor

Sample table: physician

Sample table: undergoes



Sample table: trained_in

ANSWER

Sample Solution:

SELECT name AS "Physician"

FROM physician

WHERE employeeid IN

    ( SELECT undergoes.physician

     FROM undergoes

     LEFT JOIN trained_In ON undergoes.physician=trained_in.physician

     AND undergoes.procedure=trained_in.treatment

     WHERE treatment IS NULL );

Copy

Sample Output:

    Physician

------------------

 Christopher Turk

(1 row)



Click me to see the solution

32. Write a query in SQL to obtain the names of all the physicians, their procedure, date when the procedure was carried out and name of the patient on which procedure have been carried out but those physicians are not cetified for that procedure.  Go to the editor

Sample table: physician

Sample table: undergoes

Sample table: patient



Sample table: procedure



Click me to see the solution

ANSWER

Sample Solution:

SELECT p.name AS "Physician",

       pr.name AS "Procedure",

       u.date,

       pt.name AS "Patient"

FROM physician p,

     undergoes u,

     patient pt,

     PROCEDURE pr

WHERE u.patient = pt.SSN

  AND u.procedure = pr.Code

  AND u.physician = p.EmployeeID

  AND NOT EXISTS

    ( SELECT *

     FROM trained_in t

     WHERE t.treatment = u.procedure

       AND t.physician = u.physician );

Copy

Sample Output:

    Physician     |       Procedure       |        date         |  Patient

------------------+-----------------------+---------------------+------------

 Christopher Turk | Complete Walletectomy | 2008-05-13 00:00:00 | Dennis Doe

(1 row)



33. Write a query in SQL to obtain the name and position of all physicians who completed a medical procedure with certification after the date of expiration of their certificate.  Go to the editor

Sample table: physician

Sample table: undergoes

Sample table: trained_in

ANSWER


Sample Solution:

SELECT name AS "Physician",

       position AS "Position"

FROM physician

WHERE employeeid IN

    ( SELECT physician

     FROM undergoes u

     WHERE date >

         ( SELECT certificationexpires

          FROM trained_in t

          WHERE t.physician = u.physician

            AND t.treatment = u.procedure ) );

Copy

Sample Output:

  Physician   |           Position

--------------+------------------------------

 Todd Quinlan | Surgical Attending Physician

(1 row)



Click me to see the solution

34. Write a query in SQL to obtain the name of all those physicians who completed a medical procedure with certification after the date of expiration of their certificate, their position, procedure they have done, date of procedure, name of the patient on which the procedure had been applied and the date when the certification expired.   Go to the editor

Sample table: physician

Sample table: undergoes

Sample table: patient

Sample table: procedure

Sample table: trained_in

Click me to see the solution

ANSWER

Sample Solution:

SELECT p.name AS "Physician",

       p.position AS "Position",

       pr.name AS "Procedure",

       u.date AS "Date of Procedure",

       pt.name AS "Patient",

       t.certificationexpires AS "Expiry Date of Certificate"

FROM physician p,

     undergoes u,

     patient pt,

     PROCEDURE pr,

               trained_in t

WHERE u.patient = pt.ssn

  AND u.procedure = pr.code

  AND u.physician = p.employeeid

  AND Pr.code = t.treatment

  AND P.employeeid = t.physician

  AND u.Date > t.certificationexpires;

Copy

Sample Output:

  Physician   |           Position           |         Procedure          |  Date of Procedure  |  Patient   | Expiry Date of Certificate

--------------+------------------------------+----------------------------+---------------------+------------+-------------------------

 Todd Quinlan | Surgical Attending Physician | Obfuscated Dermogastrotomy | 2008-05-09 00:00:00 | Dennis Doe | 2007-12-31

(1 row)



35. Write a query in SQL to obtain the names of all the nurses who have ever been on call for room 122.   Go to the editor

Sample table: nurse

Sample table: on_call

Sample table: room

ANSWER

Sample Solution:

SELECT n.name

FROM nurse n

WHERE employeeid IN

    ( SELECT oc.nurse

     FROM on_call oc,

          room r

     WHERE oc.blockfloor = r.blockfloor

       AND oc.blockcode = r.blockcode

       AND r.roomnumber = 122 );

Copy

Sample Output:

      name

-----------------

 Laverne Roberts

 Paul Flowers

(2 rows)





Click me to see the solution

36. Write a query in SQL to Obtain the names of all patients who has been prescribed some medication by his/her physician who has carried out primary care and the name of that physician.   Go to the editor

Sample table: patient

Sample table: prescribes

Sample table: physician

Click me to see the solution

ANSWER

Sample Solution:

SELECT pt.name AS "Ptient",

       p.name AS "Physician"

FROM patient pt

JOIN prescribes pr ON pr.patient=pt.ssn

JOIN physician p ON pt.pcp=p.employeeid

WHERE pt.pcp=pr.physician

  AND pt.pcp=p.employeeid;

Copy

Sample Output:

   Ptient   |  Physician

------------+-------------

 John Smith | John Dorian

(1 row)



37. Write a query in SQL to obtain the names of all patients who has been undergone a procedure costing more than $5,000 and the name of that physician who has carried out primary care.   Go to the editor

Sample table: patient

Sample table: undergoes

Sample table: physician



Sample table: procedure

ANSWER

Click me to see the solution


Sample Solution:

SELECT pt.name AS "Ptient",

       p.name AS "Primary Physician",

       pd.cost AS "Porcedure Cost"

FROM patient pt

JOIN undergoes u ON u.patient=pt.ssn

JOIN physician p ON pt.pcp=p.employeeid

JOIN PROCEDURE pd ON u.procedure=pd.code

WHERE pd.cost>5000;

Copy

Sample Output:

   Ptient   | Primary Physician | Porcedure Cost

------------+-------------------+----------------

 John Smith | John Dorian       |           5600

 Dennis Doe | Christopher Turk  |          10000

(2 rows)



38. Write a query in SQL to Obtain the names of all patients who had at least two appointment where the nurse who prepped the appointment was a registered nurse and the physician who has carried out primary care.   Go to the editor

Sample table: appointment



Sample table: patient

Sample table: nurse

Sample table: physician

ANSWER


Sample Solution:

SELECT pt.name AS "Patient",

       p.name AS "Primary Physician",

       n.name AS "Nurse"

FROM appointment a

JOIN patient pt ON a.patient=pt.ssn

JOIN nurse n ON a.prepnurse=n.employeeid

JOIN physician p ON pt.pcp=p.employeeid

WHERE a.patient IN

    (SELECT patient

     FROM appointment a

     GROUP BY a.patient

     HAVING count(*)>=2)

  AND n.registered='true'

ORDER BY pt.name;

Copy

Sample Output:

    Patient    | Primary Physician |      Nurse

---------------+-------------------+-----------------

 Dennis Doe    | Christopher Turk  | Laverne Roberts

 Grace Ritchie | Elliot Reid       | Carla Espinosa

 Grace Ritchie | Elliot Reid       | Carla Espinosa

 John Smith    | John Dorian       | Carla Espinosa

 John Smith    | John Dorian       | Laverne Roberts

(5 rows)





Click me to see the solution

39. Write a query in SQL to Obtain the names of all patients whose primary care is taken by a physician who is not the head of any department and name of that physician along with their primary care physician.   Go to the editor

Sample table: patient

Sample table: department

Sample table: physician

Click me to see the solution

ANSWER

Sample Solution:

SELECT pt.name AS "Patient",

       p.name AS "Primary care Physician"

FROM patient pt

JOIN physician p ON pt.pcp=p.employeeid

WHERE pt.pcp NOT IN

    (SELECT head

     FROM department);

Copy

Sample Output:

      Patient      | Primary care Physician

-------------------+------------------------

 John Smith        | John Dorian

 Grace Ritchie     | Elliot Reid

 Random J. Patient | Elliot Reid

 Dennis Doe        | Christopher Turk

(4 rows)



Practice Online


SUBMIT RESET

More to Come !

E R Diagram of Hospital Database:

E R Diagram: SQL Hospital Database.

Do not submit any solution of the above exercises at here, if you want to contribute go to the appropriate exercise page.




Part (2) – My SQL General Studies  (ICT410)



Award- Professional Certificate in Information Technology (MYSQL)



Lesson Videos



Introduction to My SQL

https://www.youtube.com/watch?v=nN4Kjdverzs

How to install My SQL in Windows 10

https://www.youtube.com/watch?v=WuBcTJnIuzo



Full Course for beginner Youtube

https://www.youtube.com/watch?v=HXV3zeQKqGY



Creating application by using MY SQL

https://youtu.be/Fu9Fy8MKF2E



My SQL Tutorial

https://www.youtube.com/watch?v=yPu6qV5byu4



My SQL Tutorials

https://www.youtube.com/watch?v=BQ5xYJMyplw



My SQL Workbench Tutorial

https://www.youtube.com/watch?v=X_umYKqKaF0

Create Search System by using PHP

https://www.youtube.com/watch?v=u6VVToFT4ws



Textbooks

MySQLNotesForProfessionals

www.iqytechnicalcollege.com/MySQLNotesForProfessionals.pdf

My SQL Tutorial

www.iqytechnicalcollege.com/mysql-tutorial-excerpt-5.5-en.pdf

Software

www.iqytechnicalcollege.com/mysql-installer-web-community-8.0.17.0.zip



http://www.filefactory.com/file/4149b5bv5oeh/mysql-installer-community-8.0.17.0.zip



Medical Data System

Youtube Video Download

https://sconverter.com/









Part (3) – Graduate Certificate in Information Technology (Hospital Data System)

 (30 Credits)





Database Systems(ICT 502)



Access and STATA Application



www.iqytechnicalcollege.com/AccessStata.htm
